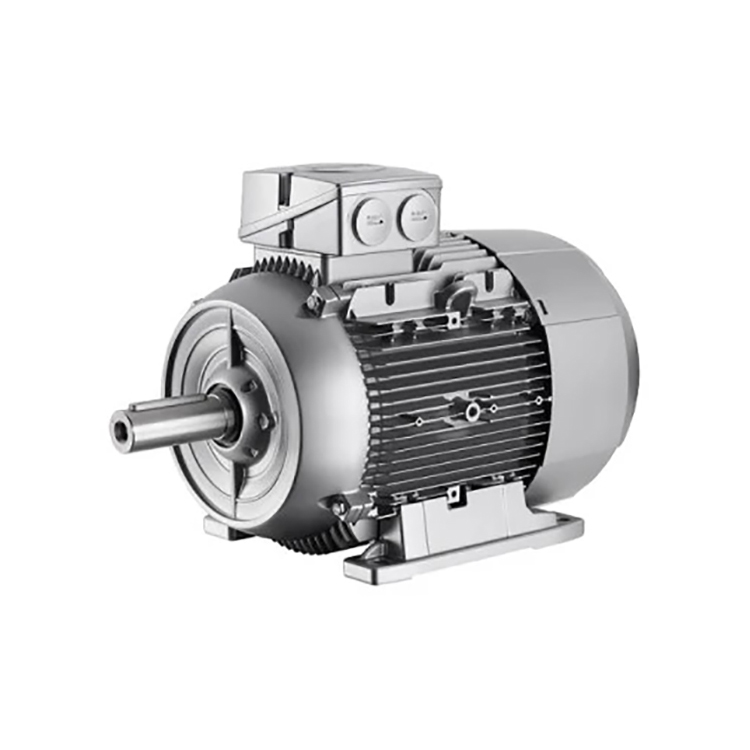

SIEMENS SIMOTICS GP/SD 1LE1/1PC1/1LE0 Standard Motors

Siemens

Top of Form

The 1LE1/1PC1/1LE0 motor family comprises of 3 main series:

1) SIMOTICS GP General Purpose 1LE1/1PC1 (Aluminum Housing) For a wide range of standard drive tasks in the industrial environment. Thanks to their particular low weight, they are suitable for applications in pumps, fans and compressors. Power output range from 0.55 -22 kW, frame sizes 80 – 160

2) SIMOTICS SD Severe Duty 1LE1 (Cast-Iron Housing) First choice for heavy duty applications under harsh environmental conditions. They resist dust or vibration in mills and mixers as well as the corrosive atmosphere in the petrochemical industry. Power output range from 0.75 – 200 kW, frame sizes 100 – 315

3) SIMOTICS SD/GP 1LE0 (Cast-Iron Housing) Meet the latest efficiency standards with highest quality, reliability, compactness and optimally integrated into the drive train. This model comes in 2 product lines, 1LE01 [Distribution Line] and 1LE002 [Option Line].

Key Features

• Compact design
• Easy mounting and installation
• Minimized rotor losses for efficiency
• Modular design: Encoders, brakes and fans can be easily added

Brief Overview

• Rated speed: 2P, 4P, 6P and 8P
• Voltage: All commonly used voltages 50Hz/60Hz

Efficiency Classes:

• IE1 (Standard Efficiency)
• IE2 (High Efficiency)
• IE3 (Premium Efficiency)

Typical Applications: Pumps, fans and compressors
