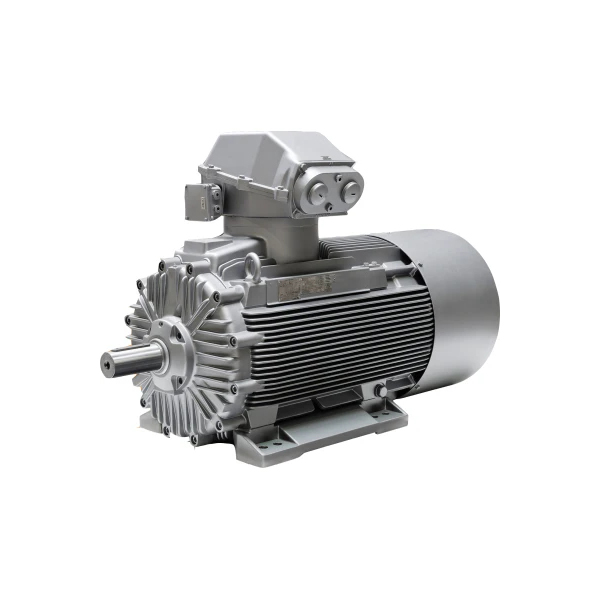

SIEMENS SIMOTICS XP 1MD5 Explosion Protection Motors

Siemens

Bottom of Form

Key Features

  • SIMOTICS XP 1MD5 motor series, type of protection “Explosion-Proof Enclosure”
  • SIMOTICS XP motors of the 1MD5 series are surface-cooled, fully enclosed motors in type of protection “Explosion-Proof Enclosure”. They can be designed in accordance with the current VIK recommendation (“Verband der Industriellen Energie- und Kraftwirtschaft e. V.”, the Association of the Industrial Energy and Power Industry)
  • The motors are marked in accordance with EN 60079-0 Ed. 2009 and EN 60079-1 with II 2G Ex de IIC T4 Gb for operation in Zone 1.



Technical Specifications
Motor Type DNGW
Frame Size 71 – 355
Outputs 0.25 – 460 kW
Temperature Class T4
Type of Protection II 2G Ex d(e) IIC Gb, IEC/EN 60079-0, IEC/EN 60079-1 Ex zones Gas Zone 1 optional Dust Zone 22/21
Guidelines 94/9/EC (ATEX 95)
Cooling Surface-cooled IC 411
No. of Poles 2-, 4-, 6-pole
Voltage/frequency 400, 500, 690 V/50 Hz
Degree of Protection IP55, IP56, IP65
Type of Construction All common types of construction
Housing Cast-iron
Insulation Class F utilized according to B
Special Versions ·        For outdoor temperatures -20 to +50 ?C

·        Permanent load S1

·        Drive-end located bearing

·        Country-specific certificates such as EAC (Eurasian Customs Union), China Energy Label, PESO (CCOE India)
